Water Heater Repair for Condo in Taman Midah, Cheras

The Problem: No Hot Water and Constant Tripping

Puan Farah contacted us on a Monday evening, sounding quite stressed. Her family's storage water heater in their Taman Midah condo had been giving problems for about two weeks. At first, the hot water would cut off randomly during showers. Then the ELCB on the DB board started tripping every time they switched the heater on.

Living in a Cheras condo with two young kids, not having hot water was more than just an inconvenience — especially for the children's evening baths. She'd already called the water heater brand's service centre, but the earliest appointment was three weeks away. That's when a neighbour in the same block recommended Prime Electrician.

"Every time I switch on the water heater, the whole bathroom circuit trips," Puan Farah explained. "Sometimes even the hall lights go off. I'm worried something is seriously wrong with the wiring."

Our Assessment

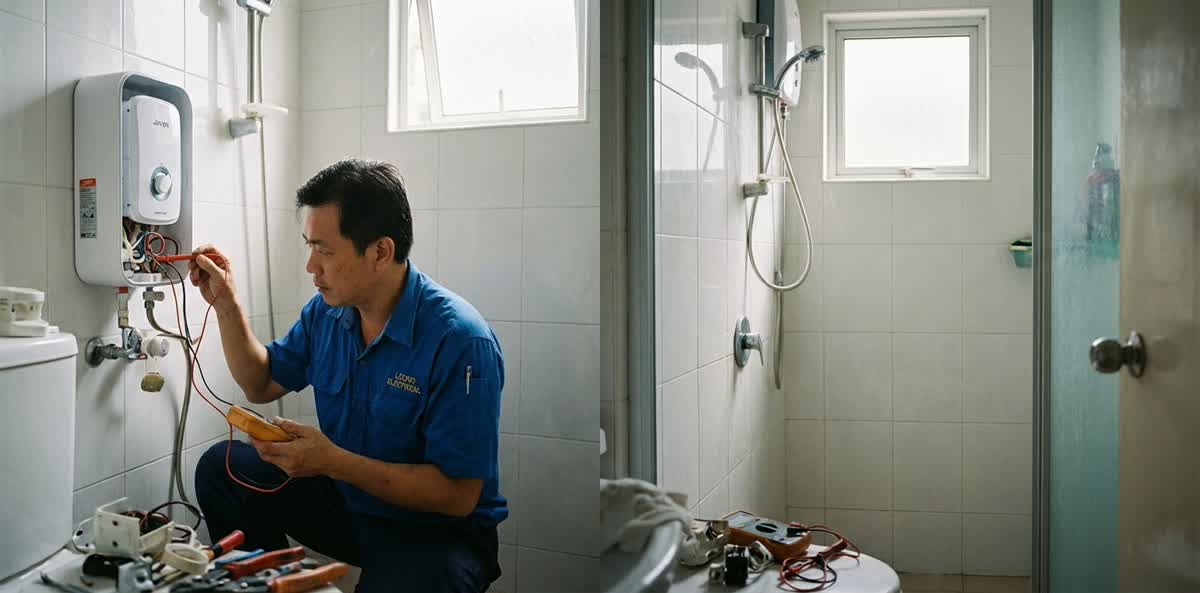

We arranged a visit the very next morning. Upon arrival, our technician Hafiz started with a thorough inspection of the electrical system — not just the water heater itself, but the entire circuit feeding it.

Here's what we found:

• Heating element failure: The immersion heating element inside the 30-litre storage tank had developed a crack in its outer casing. This allowed water to contact the live element, causing earth leakage and tripping the ELCB.
• Limescale buildup: After draining and opening the tank, we found significant calcium and limescale deposits — not unusual in Malaysian water, especially in older condo developments where the water tank on the roof hasn't been cleaned in years.
• Deteriorated wiring: The flexible cable connecting the water heater to the isolator switch was an undersized 1.0mm² cable. For a 3kW water heater, this should be at least 2.5mm² according to Malaysian wiring regulations. The cable insulation had also started to degrade from years of heat exposure.
• Missing dedicated circuit: The water heater was sharing a 15A circuit with the bathroom power points — a common but unsafe arrangement we see in many older condos.

This combination of issues was actually quite dangerous. The cracked element was the immediate cause of the tripping, but the undersized wiring could have eventually led to overheating. We've seen similar situations in other projects, like our melted socket repair in Puchong, where undersized cables caused serious damage over time.

The Repair Work

Step 1: Safe Isolation

First things first — we isolated the circuit at the DB board and verified it was completely dead using our voltage tester. Safety is non-negotiable, especially when working with water and electricity together. We also turned off the water supply valve to the heater and drained the tank completely.

Step 2: Heating Element Replacement

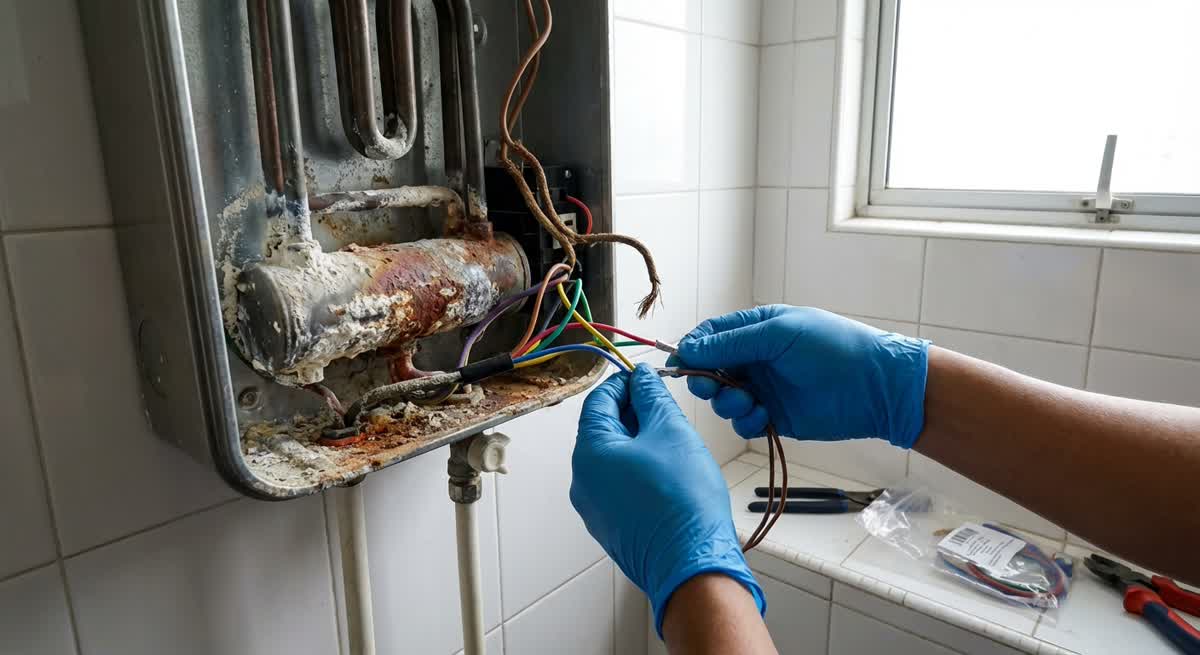

We removed the old heating element, which was visibly corroded and had a hairline crack running along the copper sheath. The new element we installed was a premium stainless steel unit rated at 3kW — same wattage as the original but with better corrosion resistance, which is important given our tropical humidity levels.

Step 3: Tank Cleaning & Anode Rod Replacement

While the tank was open, we flushed out all the sediment and limescale that had accumulated at the bottom. We also replaced the sacrificial magnesium anode rod, which was almost completely eaten away. This rod is designed to corrode instead of the tank itself — once it's gone, the tank starts rusting from the inside. Most homeowners don't even know this part exists, let alone that it needs replacing every 2-3 years.

Step 4: Wiring Upgrade

This was the critical safety improvement. We ran a new 2.5mm² heat-resistant cable from the isolator switch to the water heater, properly secured with cable clips along the wall. We also checked the 20A dedicated breaker on the DB board and confirmed the ELCB was functioning correctly with our test equipment.

Step 5: Testing & Commissioning

After reassembly, we filled the tank, checked for leaks at every connection point, and powered up the system. We monitored the unit for a full heating cycle — about 45 minutes for the 30-litre tank to reach temperature — confirming:

• No earth leakage detected (tested with our calibrated ELCB tester)
• Water temperature reaching the correct 60°C setpoint
• Thermostat cutting off properly at the set temperature
• No tripping on the DB board during operation
• Cable temperature within safe limits under full load

Results

Client Feedback

"Honestly, I was so relieved when Hafiz explained exactly what was wrong. He even showed me the cracked element and all the limescale — I had no idea it was that bad inside. The best part is they came the very next day, not three weeks later like the service centre. My kids can finally have their warm baths again! Thank you, Prime Electrician."

— Puan Farah, Condo Owner, Taman Midah, Cheras

Lessons for Condo Owners in Cheras

This project is a good reminder for condo owners across Taman Midah and the wider Cheras area. Water heaters are one of the highest-powered appliances in your home, typically drawing 3kW — that's more than your air conditioner. Yet they're often installed with minimal wiring and forgotten about until something goes wrong.

If your water heater is over 5 years old, here's what we recommend:

• Annual visual inspection: Check for rust stains, dripping, or discolouration around the unit
• Anode rod check every 2 years: This is the single most important maintenance task
• Verify your wiring: Ensure your water heater has a dedicated circuit with properly rated cable
• Test your ELCB monthly: Press the test button on your DB board — if it doesn't trip, call an electrician immediately

We've encountered similar electrical hazards in other projects too. In our electrical hazards inspection in Petaling Jaya, we found multiple appliances on undersized circuits — a common issue in Malaysian homes built before 2010.

Whether it's a water heater repair, a full water heater installation, or a general electrical safety check, getting professional help early can save you from costly damage — and keep your family safe. When a unit is too far gone, we recommend a full replacement like our water heater installation in Mont Kiara.
